Best Face capture machine Phoenix

$160.09
  • Ex Tax: $160.09
  • Product Code: M00001285
  • Availability: In Stock

We sell high-quality and affordable Facial Capture Machine in Phoenix.H.2,65.2 million face detection, capture, ultra-lowTE-FD52S7CA3-A2IRFunctional C..

Free Shipping

Ships Today

Easy

Returns

Lowest Price

Guarantee

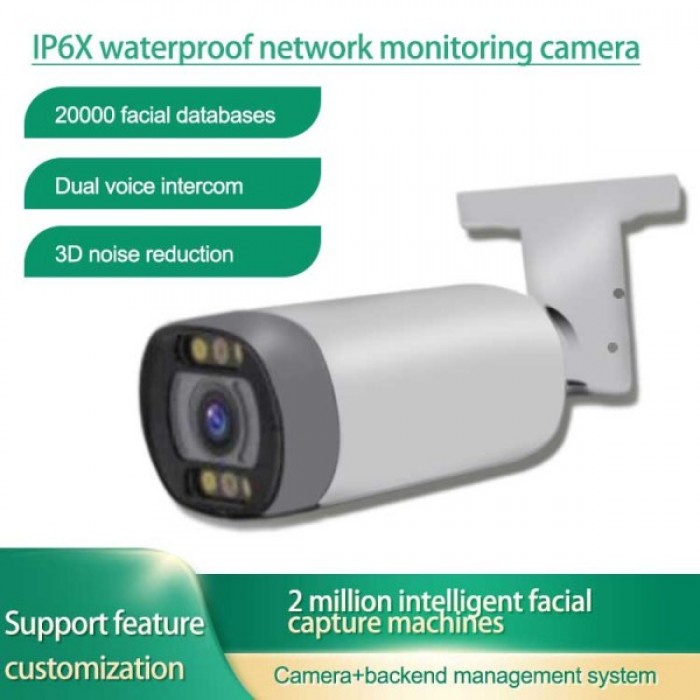

We sell high-quality and affordable Facial Capture Machine in Phoenix.

H.2,65.2 million face detection, capture, ultra-lowTE-FD52S7CA3-A2IR

Functional Characteristics

◆ Embedded powerful intelligent face algorithm, support face detection and capture in complex environment;

◆ The highest resolution is up to 2M (1920 X 1080 @ 25 fps);

◆ Support face detection, capture, to the weight and optimization;

◆ Support Smart IR to prevent infrared overexposure at night;

◆ H.265 Efficient compression, save bandwidth and storage space;

◆ Support low code rate, low latency, ROI region of interest enhanced coding;

◆ ICR infrared filter type automatic switch, to achieve the real day and night monitoring;

◆ Support the corridor mode, and increase the monitoring area under the longitudinal long and narrow environment;

◆ Support for PoE power supply function (optional);

◆ Expanded Micro SD card (128G) local storage;

◆ Support 3D digital noise reduction, digital width dynamic;

◆ Support for automatic electronic shutter function, to adapt to different monitoring environment;

◆ Support a variety of intelligent alarms;

◆ Support two-way voice intercom;

◆ Scalable support 1 alarm input / 2 alarm output;

◆ Support for Email and NTP services;

◆ Support for HTTPS encryption transmission;

◆ Start up the initial device to change the password to ensure the password security;

◆ Support for mobile phones (Android, Apple) remote monitoring.



Technical Parameter

model

FD52S7C

imaging sensor

1 / 2.8 ', 2 megapixel line scan ultra low illumination CMOS

Day and night conversion mode

ICR switch, automatic / color / black / white / external trigger

Wide Dynamic

WDR (Off / Low / Medium / High)

Light board control

Automatic / manual / off

3D noise reduction

Closed / low / medium / high / high

Go to the fog

Off / low / medium / high

acoustic image

Close / horizontal mirror / vertical mirror / 180° rotation / 90° rotation / 270° rotation

Image Settings

Brightness, contrast, sharpness, saturation, chromatic

Face detection



Number of face tests

It can detect 30 individual face targets simultaneously

To detect the size of the face

Face pixels are 80 * 80

shelter from

Ordinary glasses, shorter bangs had no effect on recognition

expression

Normally, a slight expression does not affect the recognition

Face detection rate

99% (meet the above conditions)

Capture response speed

1S

Maximum capture ability

15 fps / s, with 30 faces per frame

Personnel tracking

support

Face quality filtering

support

surveyed area

Support the specified area, the default full screen

Shield area

4 locsettings are supported

Upload method

Private Agreement Upload

Trigger way

Video trigger

Audio and video coding



Video coding criteria

H.265/H.264 / MJPEG (Substream)

Encoding features

 Main code stream: 1920 * 1080 @ 25 fps; subcode stream: D 1 @ 25 fps;

Third code stream: 1920 * 1080 @ 10 fps.

Video code rate

Fixed bit rate, variable code rate (16 kbps-8000 kbps)

Video type

Composite stream / video streaming

Audio coding standard

G.711u/64kbps

Region of interest (ROI)

Support 4 regions and can set multiple levels

Network function



networking protocol

TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP

Interface protocol

ONVIF, T8S, GB28181 (optional)

Also preview the video

Five

safe mode

Authorized user name and password, HTTPS encryption, AES connection encryption, and RTSP authentication

Mobile detection

Set the check area, you can set the multilevel sensitivity

Cover the alarm

The 1 locale setting is supported

Privacy cover

Support for 4 area occlusion blocks

Event linkage

Capnap, TF card video, send Email, alarm output linkage, preset point linkage

Mobile phone monitoring

Support Apple, Android system mobile phone monitoring

Break the network to make up

Support, cooperate with NVR implementation

Equipment anomaly detection

Support the network cable break, IP conflict, illegal access to the alarm

Character Overlays (OSD)

Title, time and date overlay, multiple line OSD, OSD color optional

system upgrade

Support remote upgrade

joggle



network interface

RJ45 10M / 100M network adaptation

Analog video output

1 route 1.0 Vp-p composite video output

audio frequency

Line input / line output

Alarm input

1-way input (extension board)

Alarm output

2-way output (extension board)

reset button

Support (extension board)

The RS485 interface

Support (extension board)

TF lay in

Support for up to 128G, Micro SD (SDHC / SDXC) card local storage (expansion board)

convention



source

The DC12V / POE is optional

Equipment size

38*38mm

working temperature

-20~55

Working humidity

0%-90%



Note: This parameter is for reference only, please take the physical object, subject to change without notice.
